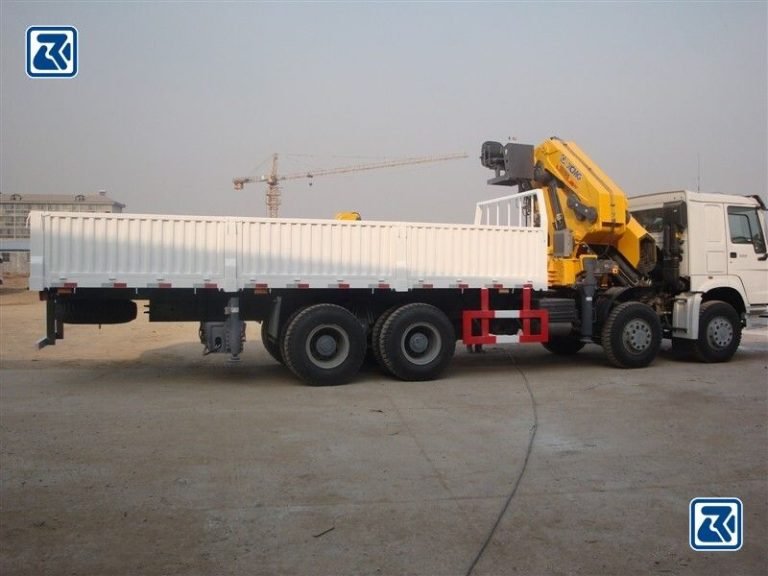

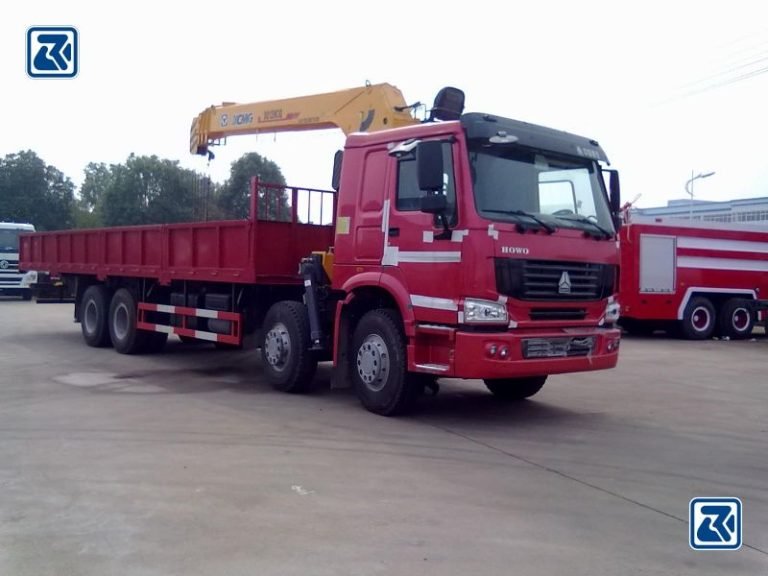

HOWO 8X4 Truck Mounted Crane
HOWO 8X4 Truck Mounted Crane For Sale
HOWO 8X4 Truck Mounted Cranes have strong engines and tough chassis designs. They can easily handle many heavy-duty jobs. These jobs can be on construction sites or in logistics centres. The crane on the truck has various lifting capacities. This lets it adapt flexibly to the needs of different operations. With its spacious cargo box and powerful lifting capacity. It is a crane designed for maximum utility, safety, and performance. It works for a wide range of tough jobs in construction, logistics, and infrastructure.
Specification
| Chassis Model | ZZ1317N4667B1(Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.47, Euro II, 371HP |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 9.726 L | |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axles | VGD95, 9500kg with drum brake system |
| Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | power steering, hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve |
| Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Tires | 12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre |
| Fuel Tank Volume (L) | 400 |
| Dead Weight | 7900 |
| Gross Vehicle Weight (kg) | 16000 |
| Rated Loading Weight (kg) | 8100 |
| Overall Dimension | 10500x2550x3500 |
| (LxWxH) (mm) | |
| Wheelbase (mm) | 1500+4200+1350 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Cargo Body Size (LxWxH) (mm) | 6500x2300x600 |
| Max lifting capacity of the crane | 1/2/3/4/5/6.3/8/10/12 |
| Remark (Engine Power Option) | 266;336HP; 371HP |
