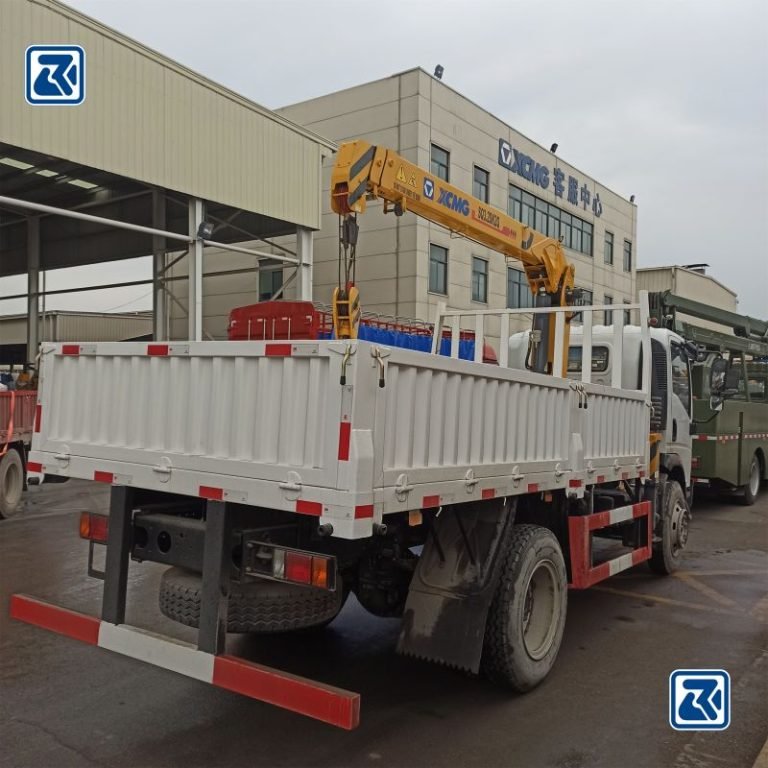

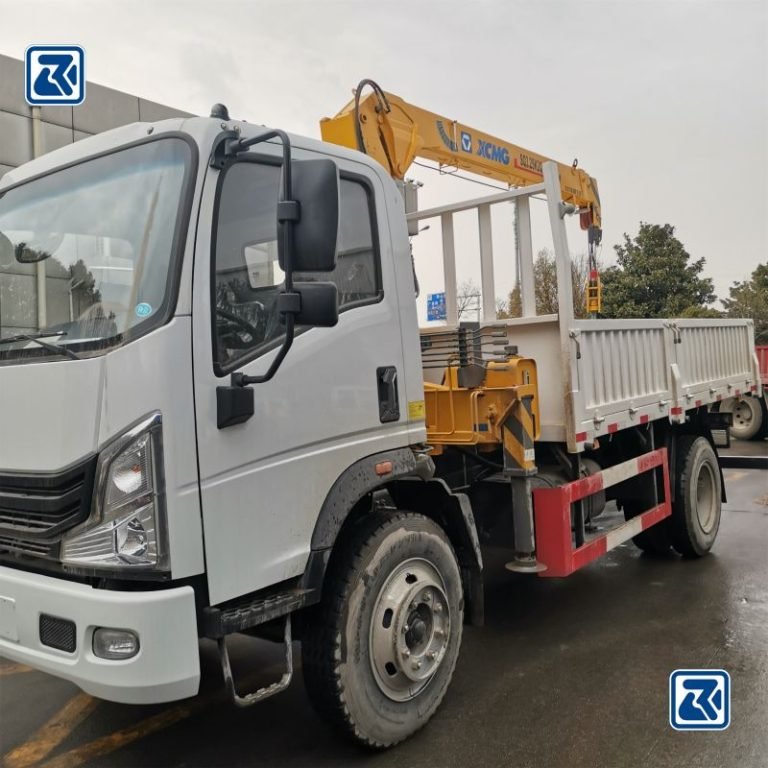

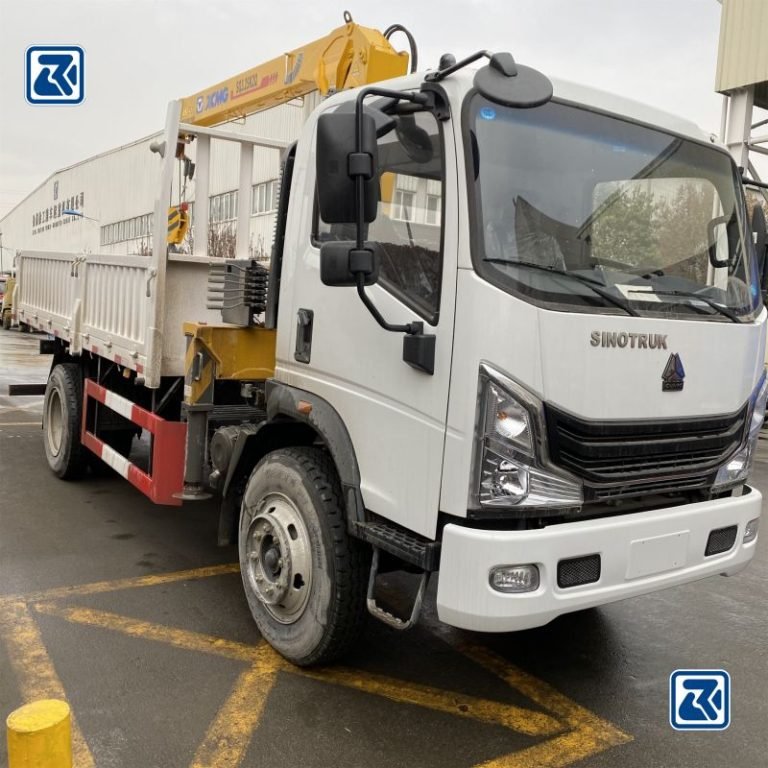

Howo 4×2 Light Duty Mounted Crane
Howo 4x2 Light Duty Mounted Crane For Sale
The Howo 4×2 Light Duty Mounted Crane offers a new solution to the construction and logistics industry. It has efficient working capacity and flexible maneuverability. This model has the functions of traditional cargo transport. But, it adds the practicality of a crane. This makes loading and unloading cargo easier and faster. Its compact design and strong power ensure easy driving even in narrow or complex environments. It also has a comfy cab and modern systems. They keep the driver safe and comfortable. This is true for short city trips or long trips between sites.
Specification
| Overall dimensions (L x W x H)mm | 9000×2550×2800 |
| Wheel base (mm) | 5200 |
| Wheel track (front/rear) (mm) | 1886/1845 |
| Approach/Departure angle(°) | 20/18 |
| Weight in KGS | |
| Tare Weight | 5670 |
| payload | 8500 |
| Front axles loading capacity | 1×3600 |
| Rear axles loading capacity | 1×10500 |
| Max. driving speed(km/h) | 95 |
| Engine | |
| Model | YC4E160-33 |
| Horse Power(HP) | 160 |
| Emission standard | Euro 2 |
| Gearbox | DC6J65TC gearbox, 6-speed Forwards gear & 1 reverse gear |
| Tire | 9.00R20 steel radial 7pcs including one spare tire |
| Cargo Box | 5900*2300*550 |

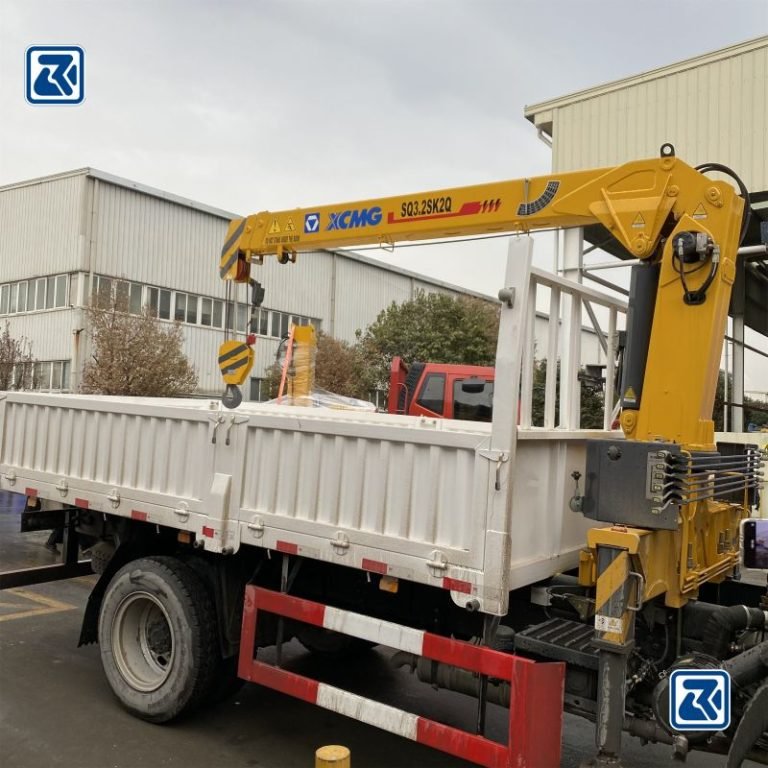

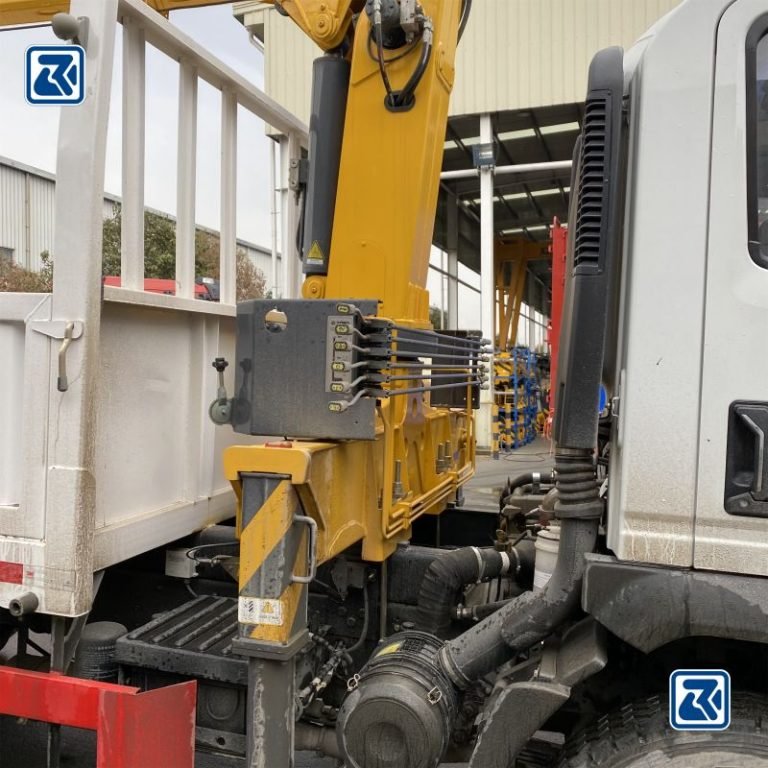

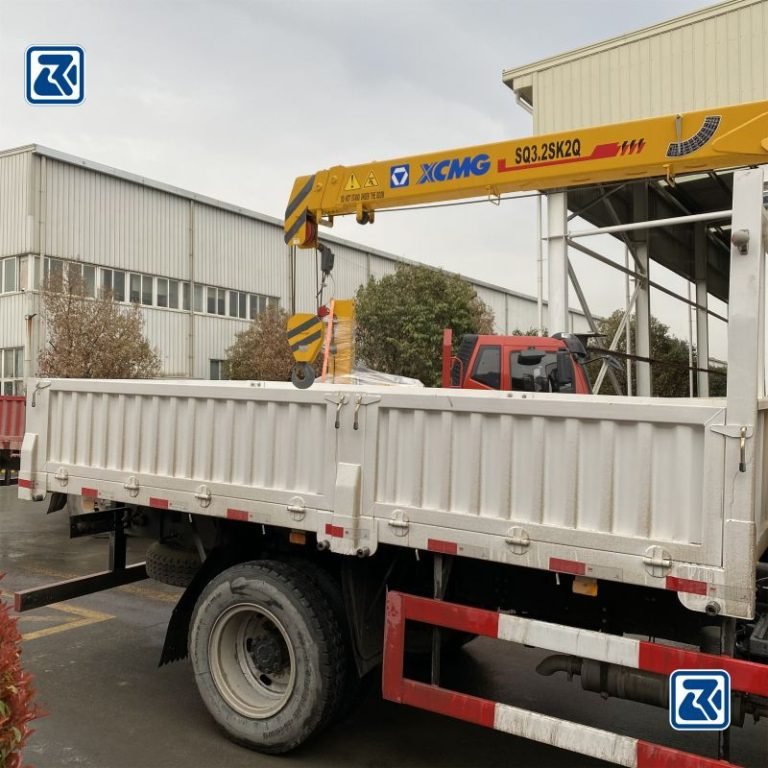

| Crane Specifications | XCMG SQ2SK2Q, Max loading capacity 2 ton |
