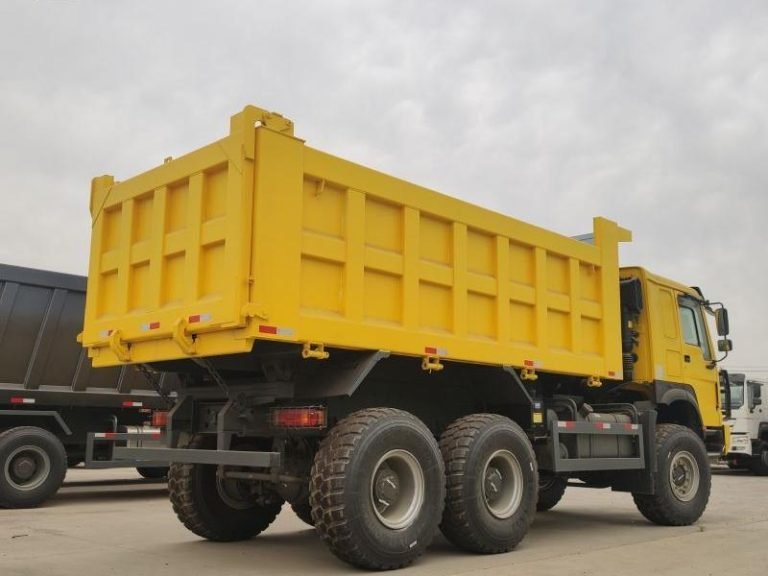

HOWO 6X6 Dump Truck
HOWO 6X6 dump truck For Sale
The HOWO 6X6 dump truck is a specialized model. It is made for tough roads with great off-road abilities. It has a WEICHAI WP10.380 380hp engine. The 6X6 drive layout ensures great performance on many terrains. The HW76 long cab is spacious and comfortable to work in. It has advanced suspension and a ZF8098 steering system. These features ensure smooth and safe driving. The vehicle’s tipping bucket is flexible. You can select different lifting methods and materials to fit your work requirements. This HOWO 6X6 tipper truck is ideal for heavy transport tasks. It is for use in areas like construction and mining.
Specification
| Wheel Base | 3600+1350 mm |
| GVW | 25000kg |
| Front axle loading capacity | 1 X 9000 |
| Rear axles loading capacity | 2 X 16000 |
| Engine | |
| Brand | WEICHAI |
| Model | WP10.380 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, supercharging Intermediate cooler |
| Displacement | 10L |
| Bore X Stroke | 126X155mm |
| Horse Power (HP) | 380 |
| Emission standard | Euro II |
| Max Speed | 75 km/h |
| Tire | 12.00-20, 12.00R20, 14.00R20 |
| Carriage | The carriage can be heightening |
| Steel thickness of Carriage floor optional 8, 10, 12, 14, 16mm | |
| Steel thickness of Carriage side optional 4, 6, 8, 10, 12, 14mm | |
| Ordinary steel, optional Manganese plate-Mn16, high strength steel | |
| Carriage lifting mode | 4800-5600mm middle lift F type and strengthening T type. 5600-5800mm front lift China system and HYVA system |
| Transmission | HW15710 or HW19710 transmission, 10 forward and 2 reverse |
| Steering | ZF8098 |
| Oil Tank | 300L |
| Brake System | Service brake: Dual circuit compressed air brake |
| Parking brake (emergency brake): Spring energy, compressed air operating on rear wheels | |
| Auxiliary brake: Engine exhaust valve brake | |
| Electrics | Operating voltage: 24V, negative grounded |
| Batteries: 2X12 V, 165 Ah | |
| Horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Option | ABS; Automatic Break Clearance Adjusting Arm; Traveling Data Recorder; Metal Pipeline; |
| Engine Protective Board; Guard grating for engine oil bottom case; All-metal front protection frame | |
