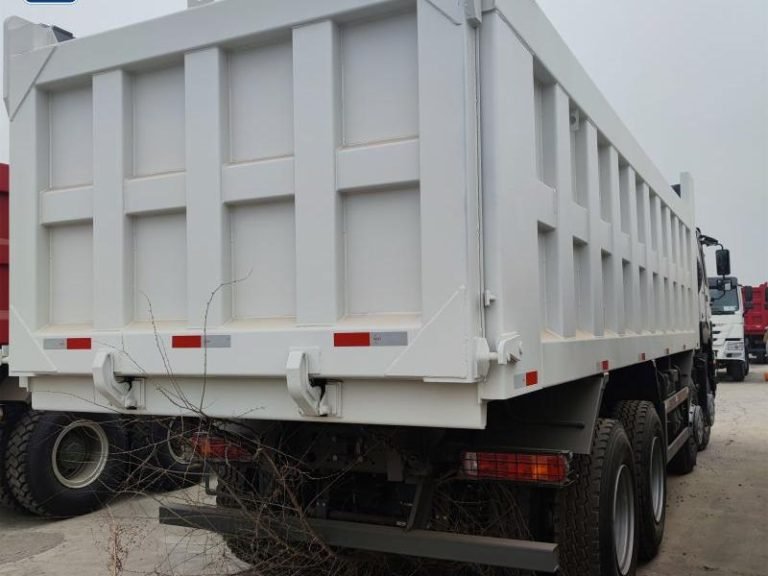

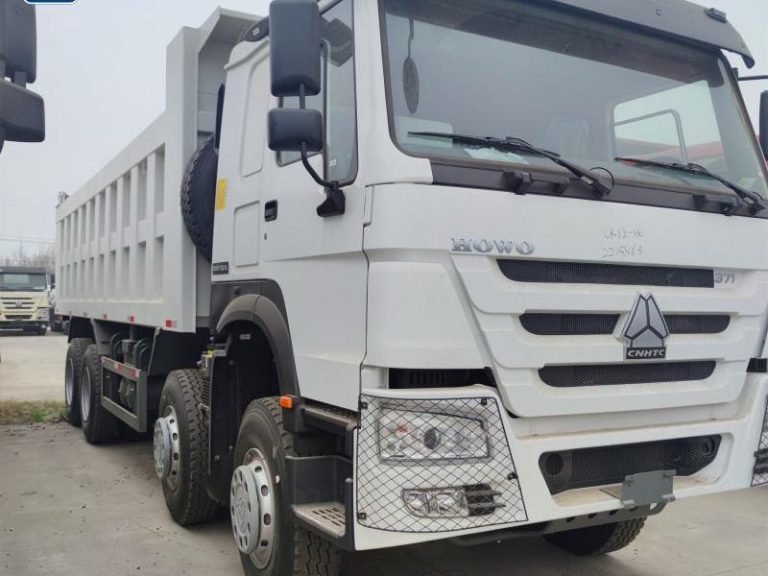

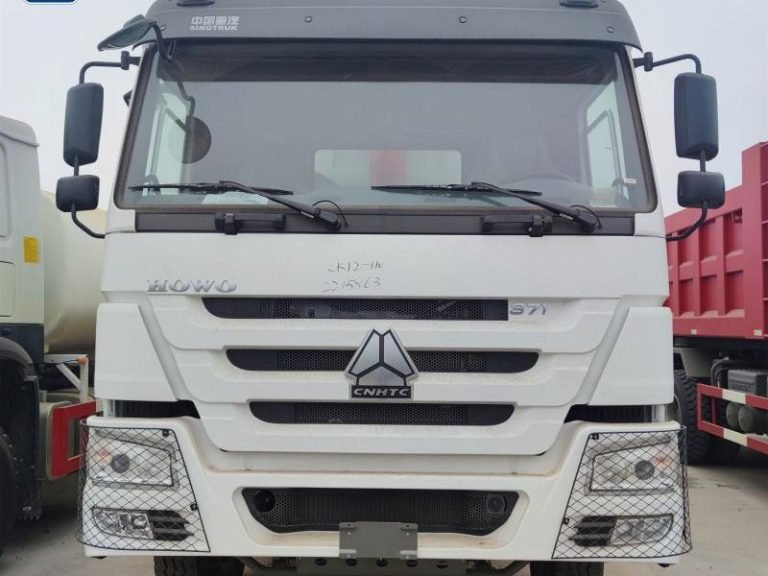

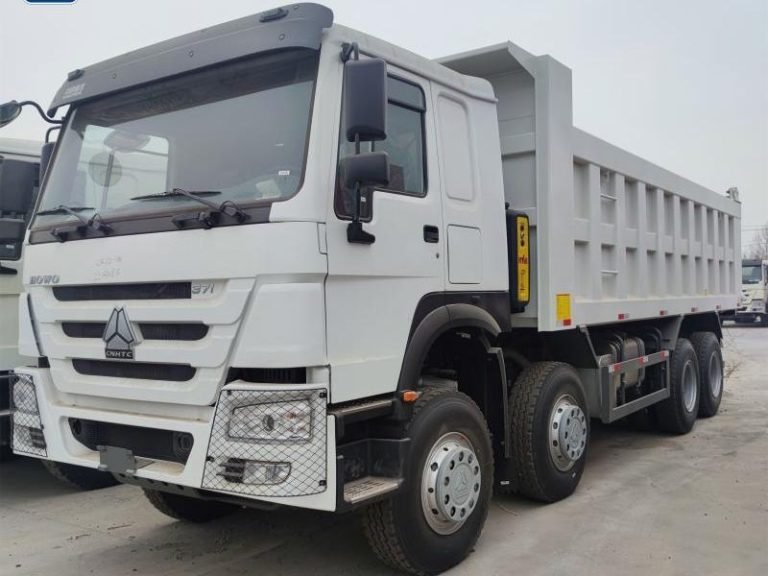

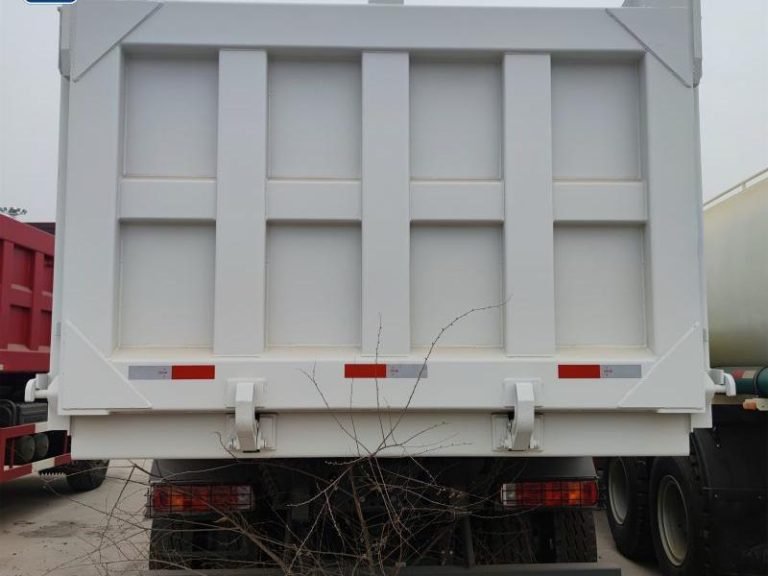

HOWO 8X4 Dump Truck
HOWO 8X4 Dump Truck For Sale
The HOWO 8X4 dump truck incorporates advanced design concepts. It has a spacious HW76 cab. The cab is comfortable and has a built-in sleeper. This ensures comfort for long drives. It is powered by SINOTRUK’s efficient diesel engine. The engine delivers up to 400bhp and has a 10-speed gearbox. The truck is strong and fuel efficient. The vehicle’s chassis is strong and reliable. The tipping bucket has a front lifting system. It is easy to use and greatly boosts work efficiency. The integrated braking system and complete electrical configuration ensure driving safety and stability. The HOWO 8X4 tipper truck has a large capacity and a strong structure. It is ideal for large-scale transport tasks.
Specification
| Chassis Model | ZZ3317N3567C |
| Driving Type | Left Hand Driving (Right Hand Driving is optional) |
| Production Year | 2024. New truck. |
| Engine | Make: SINOTRUK |
| Diesel 4-stroke direct injection diesel engine | |
| Engine model: WD615.47, Euro 2, 371 HP/WP12.400E201, Euro 2,400 HP | |
| 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Displacement: 9.726 L | |
| Transmission | HW19710, 10F & 2R, with PTO |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9, 2×9000 KGS |
| Steering with doubleT-cross section beam | |
| Rear Axle | HC16, 2×16000 KGS |
| Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. | |
| Ratio:5.73 | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members |
| Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer | |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer | |
| Brake | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | |
| Batteries: 2 x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Tires | 12.00R20, radial tires with one spare tire. |
| Optional: 315/80R22.5 tubeless tires. | |
| Fuel Tank | 300 L |

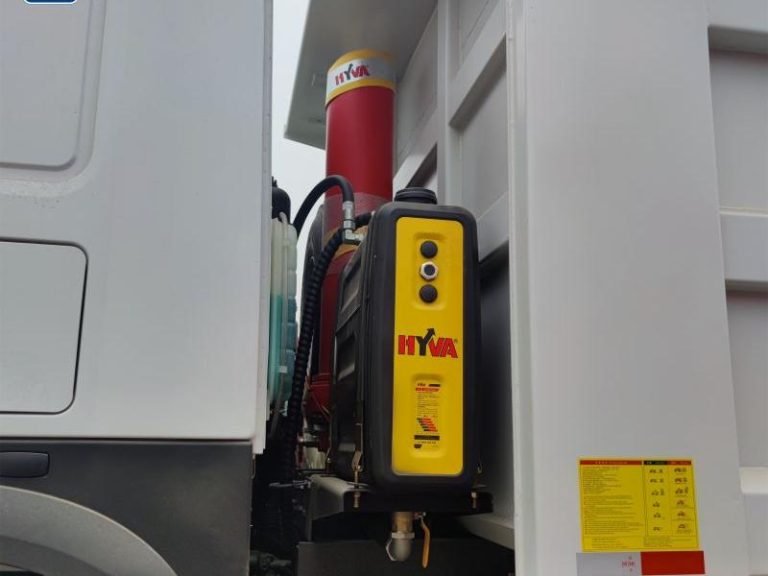

| Cargo Body | 7300*2300*1700 mm, 28.54 CBM, Floor 8 mm side 6 mm, Front lifting system |
