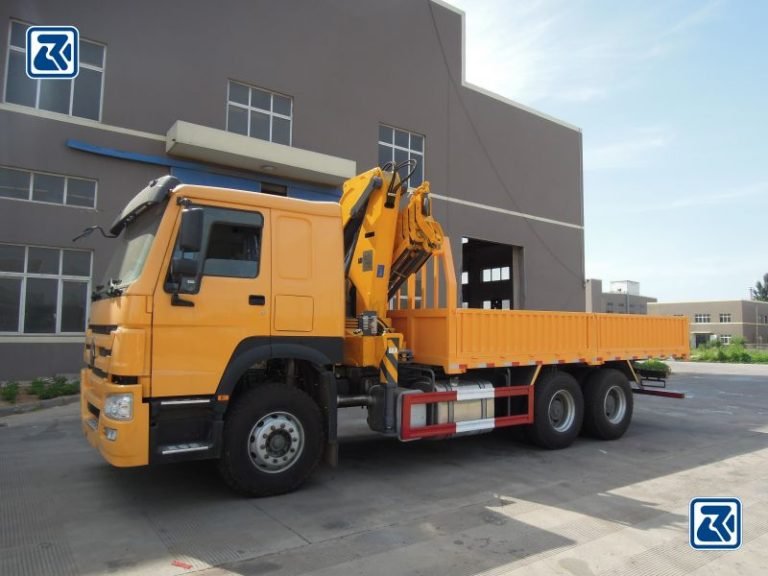

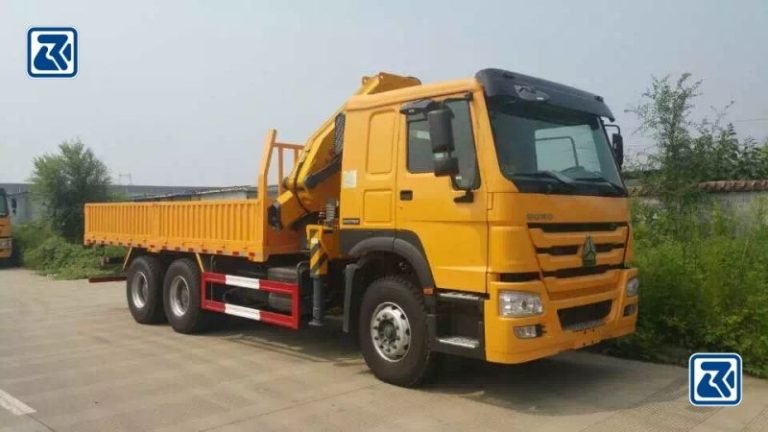

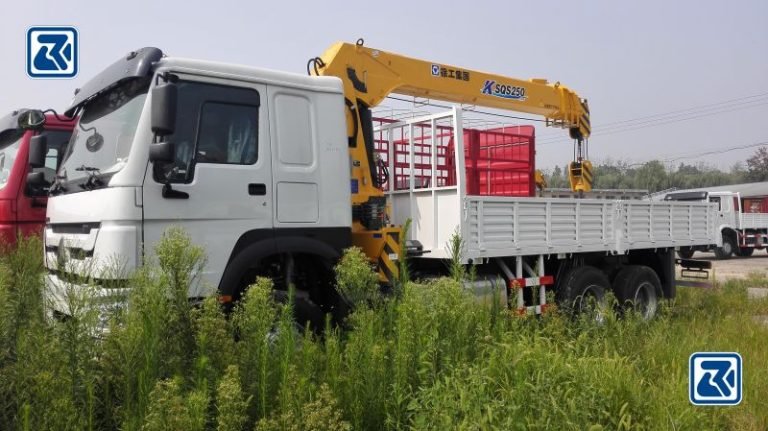

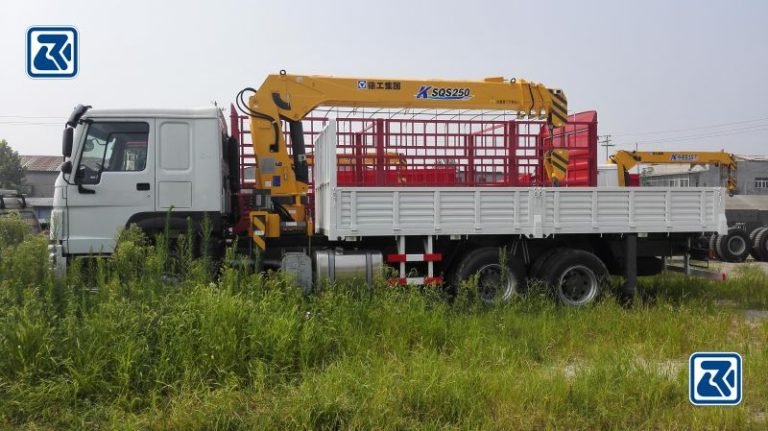

HOWO 6X4 Truck Mounted Crane
HOWO 6X4 Truck Mounted Crane For Sale
The truck has a tough chassis. It has a powerful crane that can lift 10 tonnes. The Sinotruck HOWO 6X4 Truck mounted crane is made to handle many tough lifting tasks with ease. This truck is customised for versatility. Its dimensions, as well as the reach and swivelling capacity of the crane, have been adjusted. This allows it to operate in different environments. The vehicle’s performance is powered by a strong engine. It is complemented by a reliable drivetrain for smooth navigation and maneuverability. Brakes and steering provide additional safety and control. It is an excellent lifting device.
Specification
| Truck Brand | SINOTRUK-HOWO |
| Chassis No | ZZ1257M4641W |
| Cargo body size(LxWxH) | 6500x2650x600mm; floor3mm,side1.5mm |
| Dimension(Lx W xH) (mm) | 10350×2680×3900 |

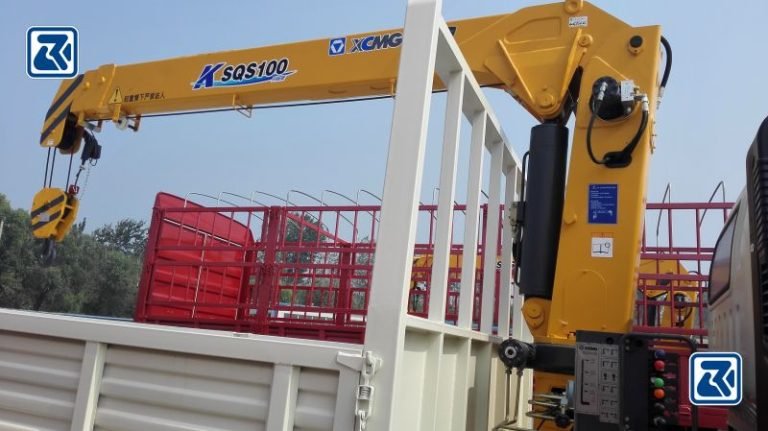

| Telescopic arm crane | Max.lifting capacity:10ton |
| Max.lifting height:9.755m | |
| Max.lifting moment:20T.m | |
| Rotation angle:360°(all rotation) | |
| Oil flow of hydraulic system:40L/min | |
| Pressure of hydraulic system:28Mpa | |
| Oil tank capacity:160L | |
| Crane weight:3477kg | |
| Installation space:1150mm | |
| Approaching angle/Departure angle(°) | 16/12 |
| Overhang(front/rear) (mm) | 1500/2875 |
| Wheel base (mm) | 4600+1350 |
| Max speed(km/h) | 102 |
| Curb weight(kg) | 14850 |
| Gross Vehicle weight(kg) | 25000 |
| Engine | WD615.87, Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail |
| 290HP | |
| Euro 2 | |
| Transmission | HW13710,10 forward&2 reverse |
| Brake system | Service brake:Dual circuit compressed air brake |
| Parking brake:spring energy, compressed air operating on rear wheels | |
| Auxiliary brake:Engine exhaust brake | |
| Steering system | 8198,hydraulic steering with power assistance |
| Front axle | HF7 |
| Rear axle | ST16 |
| Tyre | 12R22.5, 10+1 spare |
| Electrical system | Battery:2X12V/165Ah;Alternator:28V-1500kw;Starter:7.5Kw/24V; |
