Shacman X3000 Dump Truck 6X4
Shacman X3000 Dump Truck 6X4 For Sale

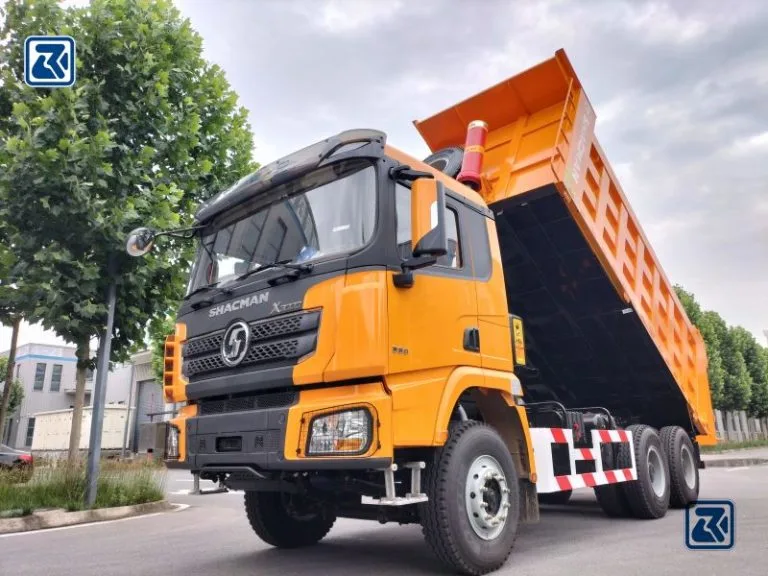

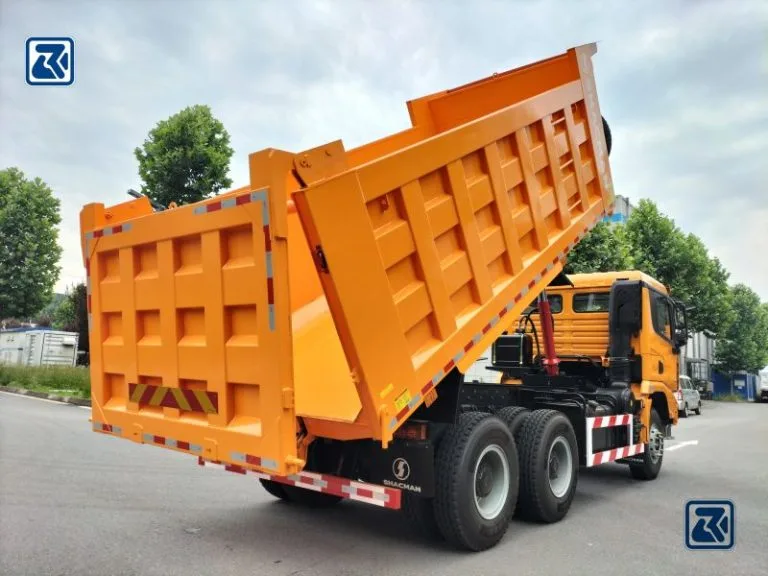

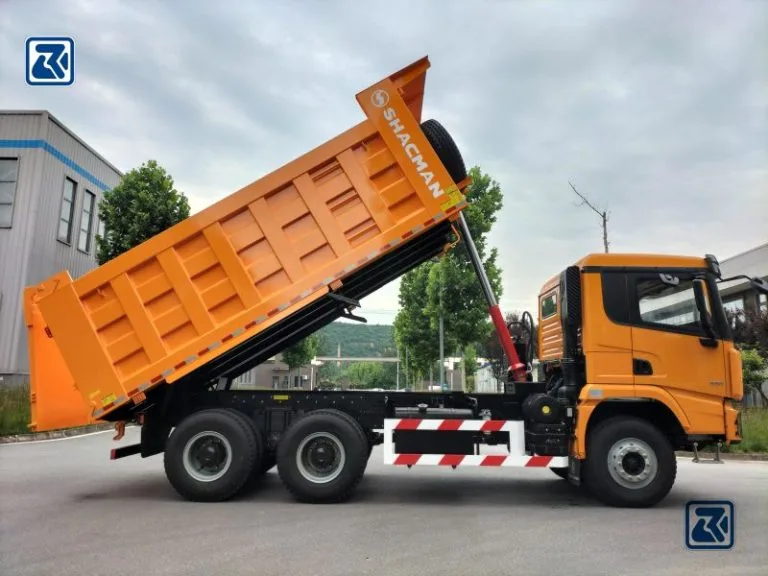

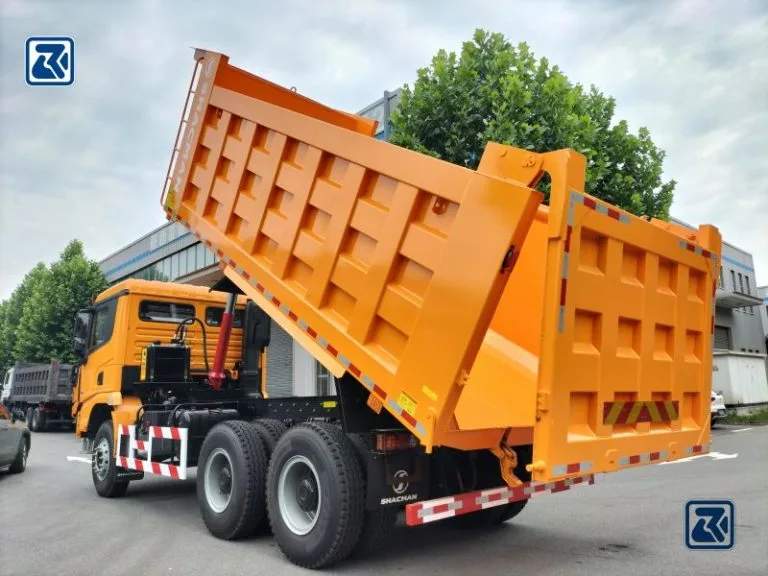

The Shacman X3000 Dump Truck 6X4 meets the top standards for heavy-duty transportation and is equipped with the powerful WP12.430E50 engine with a maximum power of 430 hp, which meets the Euro 5 emission standards and fulfills environmental requirements. The truck has a maximum operating speed of 85 km/h and a body volume of 19 cubic meters, which can be expanded to 20 cubic meters to meet larger transport needs. It is equipped with the HYVA center or front lift hydraulic system, which is robust and easy to unload.
Specification
| Parameter | Specification |
| Engine | WP12.430E50, 430hp, Euro 5 |
| Cab | X3000, LHD, high cab |
| Axles | MAN9ton / MAN16T |
| Tires | 315/80R22.5*6+1 or 10+1 pecs |
| Max. Speed | 85 km/h |
| Dimensions (LWH) | 838524903450 mm |
| Cargo Box Volume | 19 m³, 20 m³ option available |
| Cargo Box Thickness | Bottom 8 mm, side 6 mm |
| Hydraulic Lifting System | HYVA middle lifting or front lifting |
| Approach/Departure Angle | 28° / 30° |
| Kerb Weight | 12500 kg |
| Total Mass | 25000 kg |
| Wheel Base | 3775+1400 mm |
| Overhang (front/rear) | 1525 / 1710 mm |
| Track Width (front/rear) | 1860 / 1800 mm |
| Horsepower | 380 hp |
| Gearbox | 10JSD180, 10 Forward & 2 Reverse |
| Clutch | 430 Diaphragm type |
| Steering | ZF technology |
| Cab | MAN F3000 flat roof with A/C & sleeper |
| Front Axle | 9.5 Ton MAN with Drum brake |
| Rear Axle | 16 Ton MAN axle, Double reduction 5.92 |
