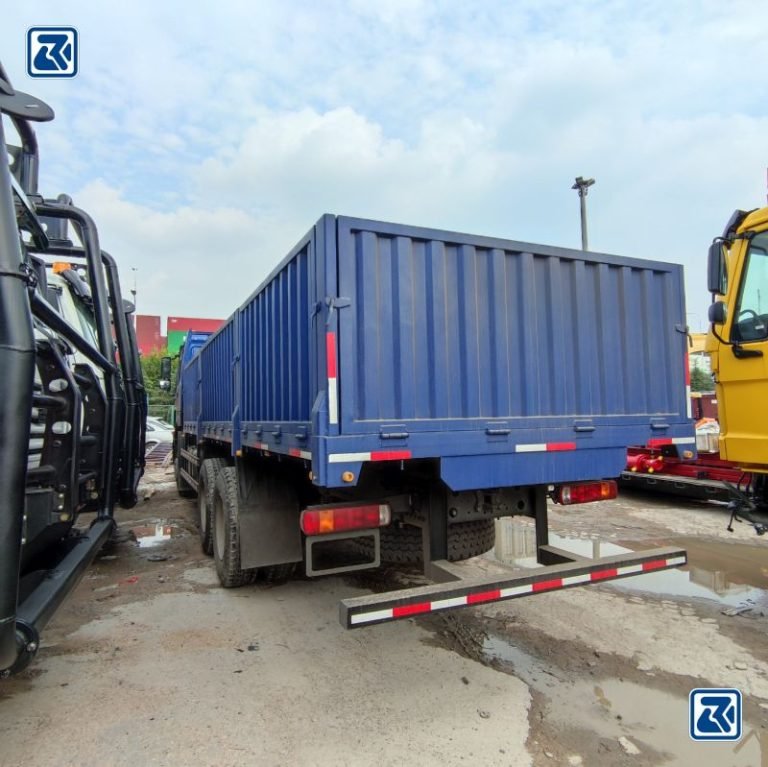

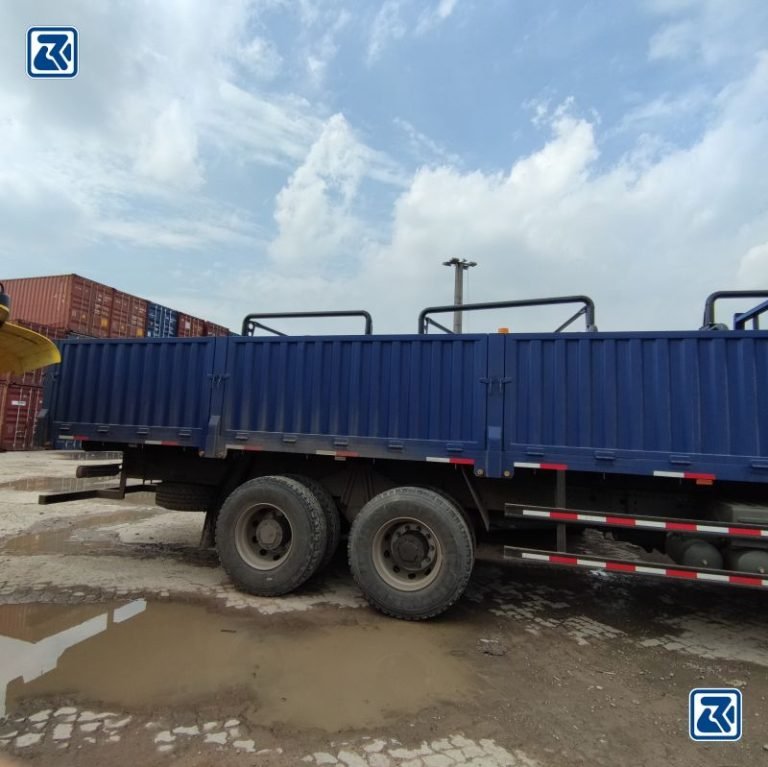

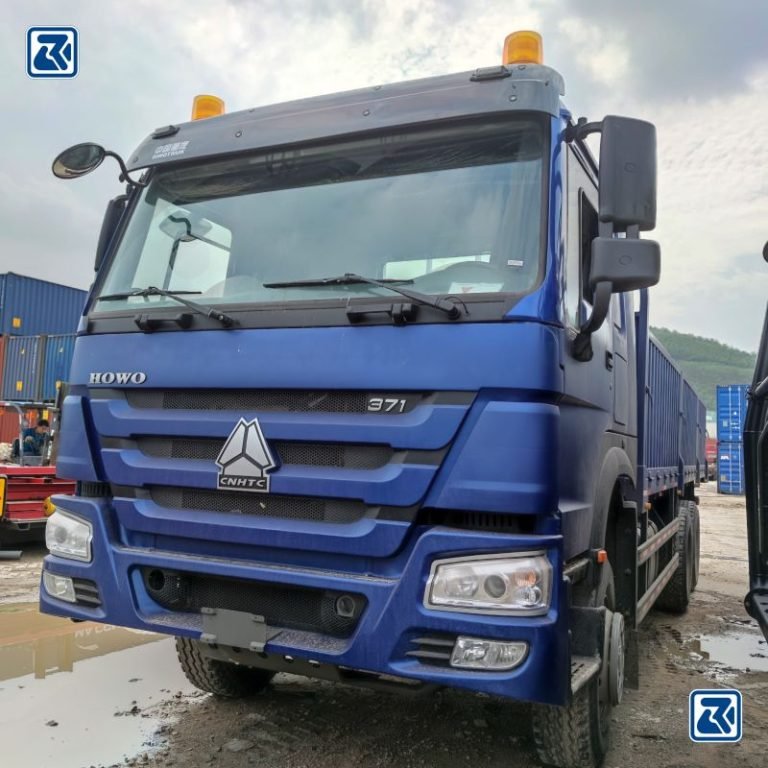

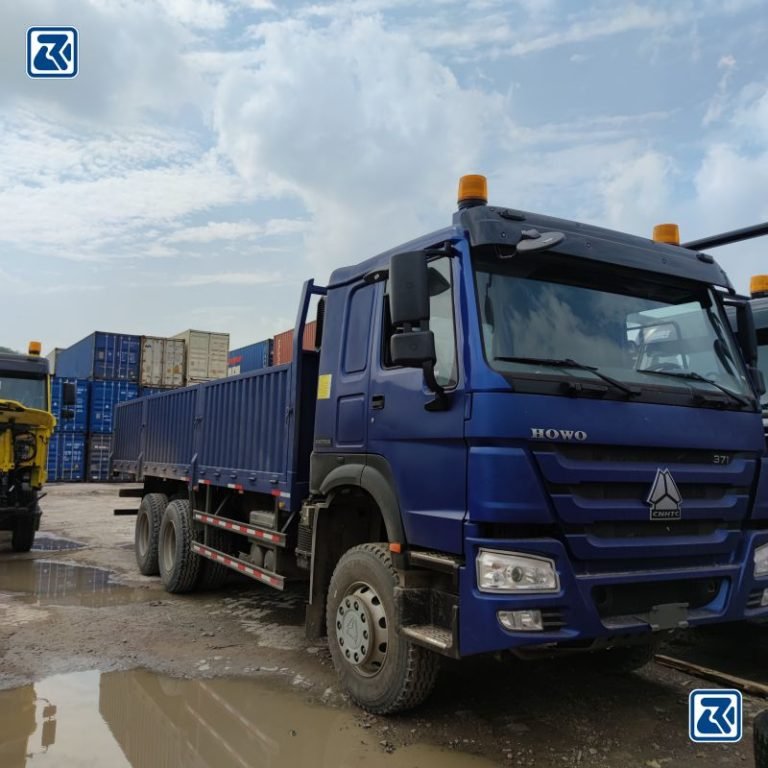

HOWO 6X4 Cargo truck
HOWO 6X4 Cargo truck For Sale
The HOWO 6X4 Cargo Truck is equipped with the WP12.400E201 engine, which has a powerful output of 400 hp and meets Euro 2 emission standards. The cockpit of this truck features the new HW76 front design and is equipped with an air conditioning system to keep you comfortable even on long drives. With a load capacity of 20 to 25 tonnes, it can easily cope with a wide range of transport needs, be it construction materials or consumer goods. It is a trustworthy heavy-duty transport tool.
Specification
| Chassis Model | ZZ1257N4347B1(Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.69, Euro 2, 336HP |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 9.726 L | |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse |
| Front Axles | 9000kg with drum brake system(or HF7,7000kg with drum brake system) |
| Rear Axles | HC16, 16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 4.42, 4.8, 5.73, OR |
| Suspension | Front suspension: 9 pcs (or 3 pcs) leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs (or 5pcs or 15pcs) leaf springs with bogie spring and stabilizer | |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | Hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve |
| Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Tires | 12.00R20 (12.00-20,315/80R22.5, 295/80R22.5. 12R22.5, 12.00R24 optional), with one spare tyre |
| Fuel Tank Volume (L) | 400 (600) |
| Dead Weight | 12380 |
| Gross Vehicle Weight (kg) | 25000 |
| Overall Dimension (LxWxH) (mm) | 9400x2496x3200 |
| Cargo dimension(mm) | 7300x2300x800 |
| Wheelbase (mm) | 4300+1400 |
| Min.Ground Clearance (mm) | 267 |
| Approach/Depart Angle(°) | 16/70 |
| Gradeability (%) | 20 |
