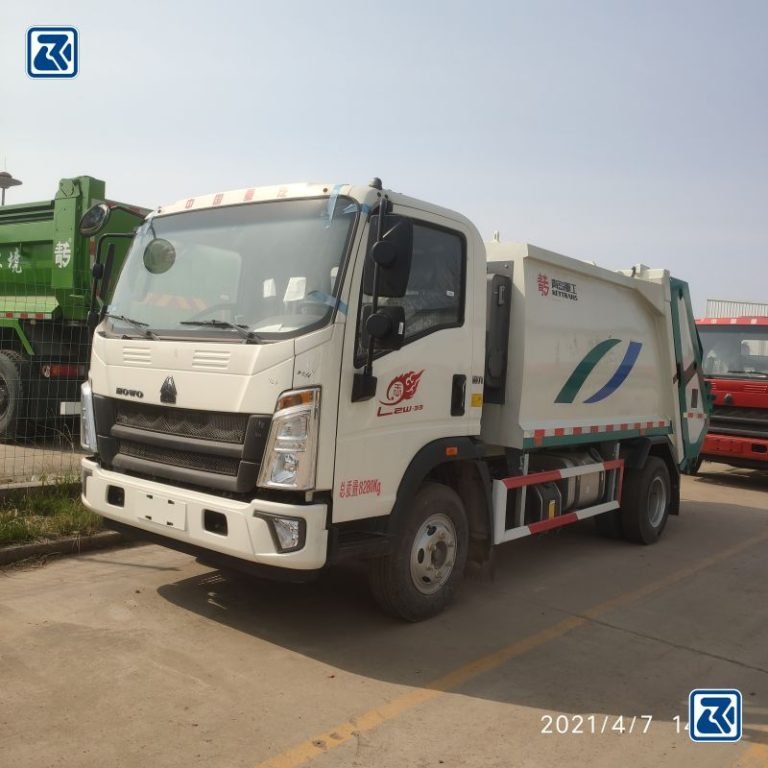

HOWO 4X2 Light Duty Garbage Truck
HOWO 4X2 Light Duty Garbage Truck For Sale
The HOWO 4X2 Light Duty Garbage Truck is tailored to improve the efficiency and manoeuvrability of city waste management. It offers a small and flexible waste disposal solution. It focuses on efficiency. It has a powerful engine with reliable performance. It also has a responsive manual transmission. The vehicle’s design ensures a smooth ride. This is vital when traveling on city streets. An advanced braking system guarantees safety during use. The small size and huge waste capacity make it ideal for keeping cities clean.
Specification
| Chassis Model | ZZ1068G3815D1 (Left/ Right Hand Driving Type Optional) |
| Engine | Model: YC4110, Euro 2, 116HP |
| 4-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 4.6 L | |
| Clutch | Single-plate dry diaphragm spring clutch,hydraulically operating with air assistance |
| Gearbox | Manual operation, WLY653, 6 forward and 1 reverse |
| Front Axles | 2700kg with drum brake system |
| Rear Axles | 7200kg, with drum brake system |
| Suspension | Leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Steering System | Hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve |
| Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Tires | 7.25R16, with one spare tyre |
| Fuel Tank Volume (L) | 120 |
| Dead Weight(kg) | 6500 |
| Gross Vehicle Weight (kg) | 11000 |
| Overall Dimension (LxWxH) (mm) | 7200x2400x3050 |
| Wheelbase (mm) | 3800 |
| Effective Mixing Voulume(m3) | 6 |
| Time of one filler cycle(s) | ≤60 |
| Time of discharge(s) | ≤90 |
