HOWO 4X2 Dump Truck
HOWO 4X2 dump truck For Sale
The HOWO 4X2 dump truck is efficient and reliable. It is a light duty truck for many industries, like construction, mining, and agriculture. The model has the ZZ3168E3514C1 chassis. It is powered by the YC4E130-33 130 hp engine. The engine meets the European Class II emission standards. It provides strong power and excellent fuel efficiency. It has a manual transmission with 6 forward and 1 reverse gears, and the front and rear axles are designed to be robust and durable. The vehicle also has advanced suspension. It has advanced braking systems too. They keep driving safe and comfortable. The size, wheelbase, and load capacity have all been carefully designed. They make it ideal for all types of heavy-duty transport tasks.
Specification
| Chassis Model | ZZ3168E3514C1(Left/ Right Hand Driving Type Optional) |
| Engine | Model: YC4E130-33, Euro 2, 130 HP |
| 4-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 4.726 L | |
| Clutch | Single-plate dry diaphragm spring clutch,diameter260mm,hydraulically operating with air assistance |
| Gearbox | Manual operation, WLY651, 6 forward and 1 reverse, with Power Take-Off (PTO) |
| Front Axles | 3200kg with drum brake system |
| Rear Axles | 8000kg, double stage reduction (central+ hub), cast axle housing |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | brand power steering, model 8118 , hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve |
| Service brake: dual circuit compressed air brake | |
| Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels | |
| Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms | |
| Tires | 8.25R16, with one spare tyre |
| Fuel Tank Volume (L) | 200 |
| Dead Weight | 6548 |
| Gross Vehicle Weight (kg) | 16000 |
| Rated Loading Weight (kg) | 9865 |
| Overall Dimension(LxWxH) (mm) | 7545x2550x3400 |
| Wheelbase (mm) | 3800 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Cargo Body Size (LxWxH) (mm) | 3850*2200*1000mm |
| Remark (Engine Power Option) | 130HP; 160HP |
Key Features
HOWO 4X2 dump trucks from HOWO Special Truck Ltd offer several special benefits that make them ideal for short distance transportation.
Flexibility
The HOWO 4X2 tipper truck has a compact body design throughout. This design is particularly suited to the requirements of narrow-area operations and offers great flexibility. Also, this model is for small tonnage transport. It is for short-distance use. It is often used to transport construction materials, agricultural products, and earthmoving products.
Powerful and high load capacity
This 4X2 dump truck is equipped with a 130HP engine that provides stable and reliable power. In addition, it has a total load capacity of 15 tons, which enables it to transport sand and gravel effectively. It can perform some heavy-duty transportation and is able to maintain a good operating performance.
Hydraulic unloading system
The truck is equipped with a rear-end articulated hopper, which can be lifted up by the hydraulic system to realize quick unloading. At the same time, the hydraulic system adopts a relatively simple design, which makes it easier to maintain in the later stage.

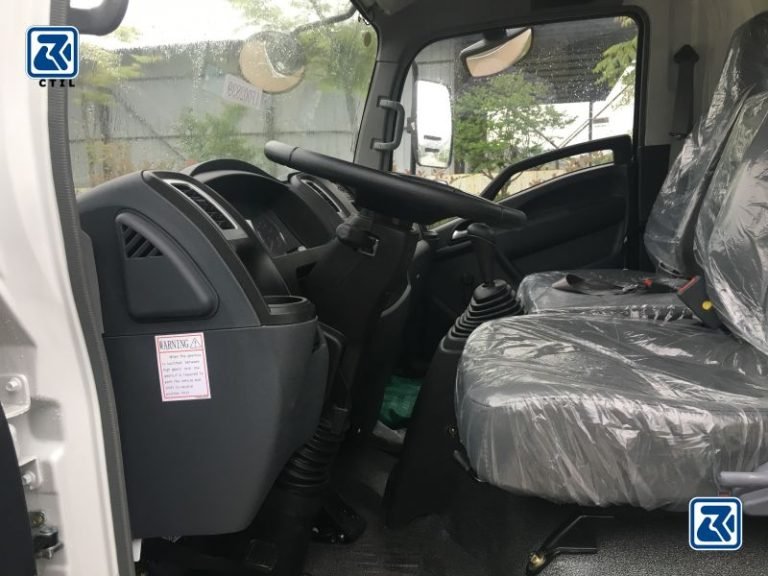

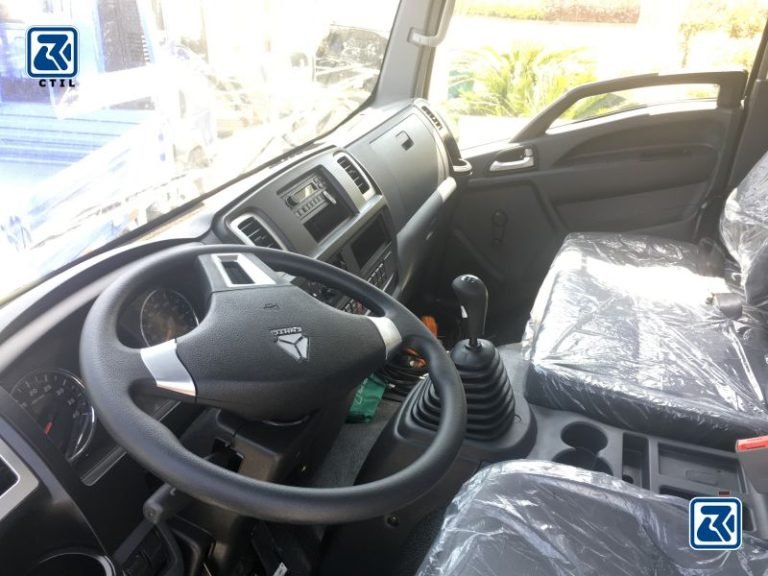

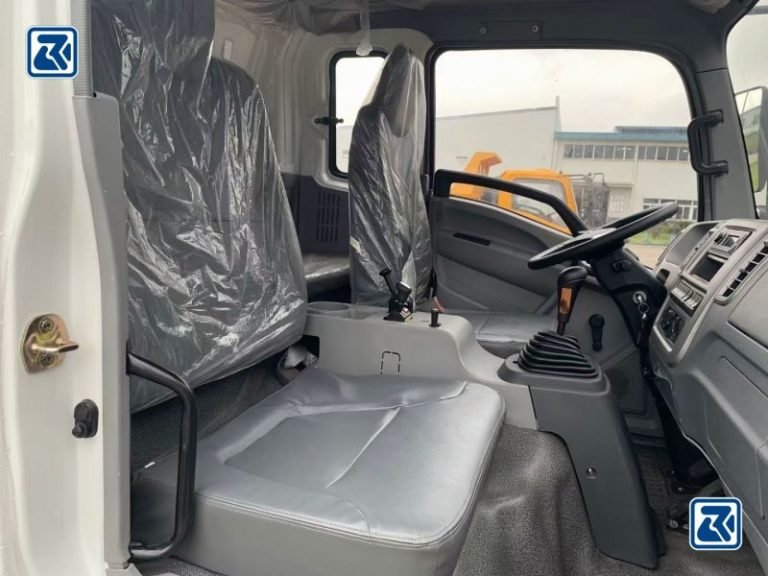

Cab design
The cab of our HOWO dump trucks is available in single bunk (H77L) and double bunk (H78L) configurations to meet the needs of long-distance transportation.
Our steering wheels are also equipped with a number of modern features. These include multimedia controls, cruise control and Bluetooth calling capabilities. In addition, to ensure a more comfortable driving experience, we’ve added air conditioning, power windows and convenient storage space.
For transport vehicles with higher driving requirements, extra systems are available. They include a Lane Departure Warning System (LDWS) and a Collision Avoidance Warning System (FCWS). These systems ensure transportation safety.
Application Scenarios
Rural construction: HOWO 4X2 dump truck is compact and flexible, which is very suitable for material transportation on narrow roads in the countryside.
Construction Transportation: This vehicle can also meet the needs of earth removal at construction sites, construction waste removal and short-distance transportation of construction materials.
Agricultural transportation: The 4X2 tipper truck is also ideal for agricultural transportation. For example, it can transport crops, fertilizers and farm tools, providing a more convenient way of transportation for agricultural production.
Mining: The 4X2 tipper truck is also well suited to the harsh transportation environments of mines and quarries. It can efficiently transport heavy materials such as coal and ore.
Customized services supported by our company
The HOWO 4X2 Dump Truck has a diverse range of customization options to meet different transportation needs.The common customization ranges that HOWO Special Truck Ltd can offer are:
Cargo Bucket Type
U-shaped hopper: The U-shaped hopper is ideal for the transportation of loose materials (such as sand and gravel) and can improve unloading efficiency.
Rectangular hopper: Rectangular hopper can provide support for transportation of materials that require a stable base, such as bricks and cement, reducing material loss.
Power Configuration: Customers can choose 130HP and 160HP engine power to adapt to different transportation loads and terrain requirements.
Cab Type: We offer two types of cabs (H77L/H78L). The single-deck sleeper (H77L) cab is suitable for short-distance operation. The double berth (H78L) cab provides more comfort and storage space for long-distance driving.
