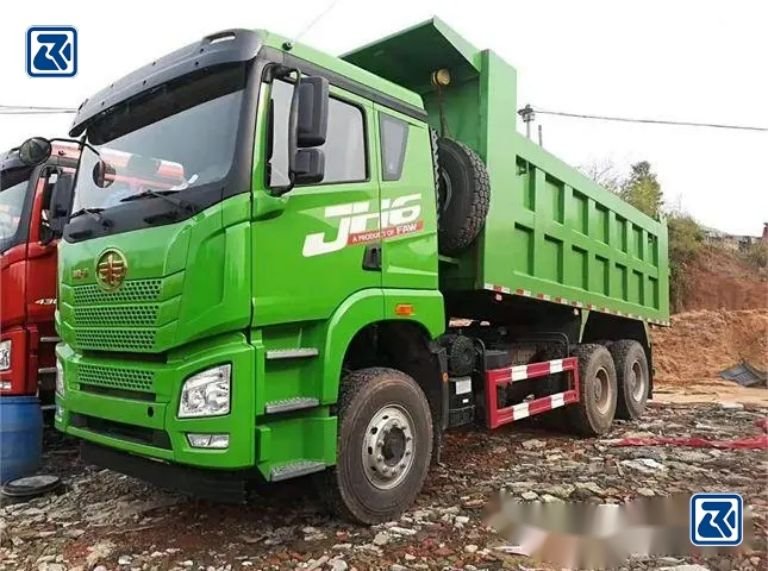

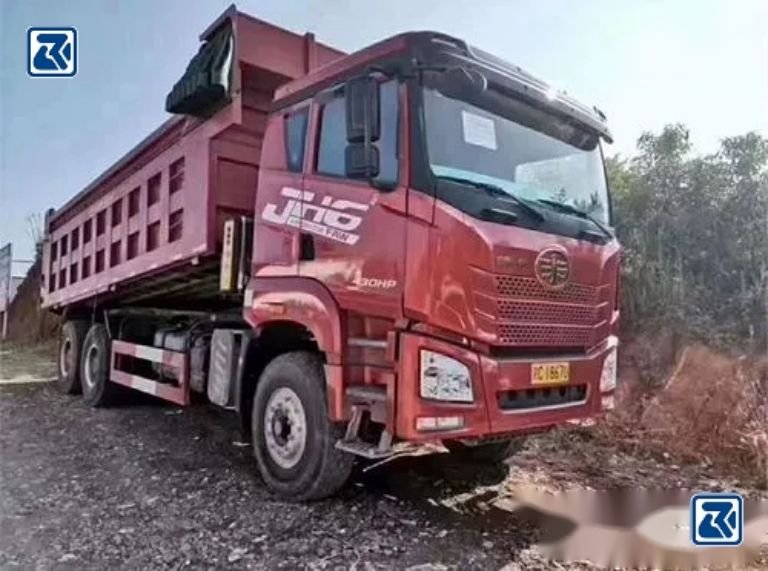

FAW Dump Truck 6X4 JH6
FAW Dump Truck 6X4 JH6 For Sale
The FAW Dump Truck 6X4 JH6 is a heavy-duty truck designed for construction, mining and large-scale landscaping projects. It has a powerful 420 hp Xichai CA6DM2-42 engine. The FAW Dump Truck 6X4 JH6 can do many tough jobs well. It also meets Euro 2 emission standards. The vehicle’s cockpit is designed for driver comfort. It is spacious and has good air conditioning. This keeps the driver comfortable during long work hours. Also, the JH6 has a reinforced front axle and double-deceleration rear axle. It has a drum brake system and many tire configurations. These features keep the vehicle stable and reliable on rough or slippery mud. They also improve operational efficiency and safety.
Specification
| Model: | CA3250P66K24LT1E6 |
| Wheelbase: | 4050+1350mm |
| Rear track: | 1878/1878mm |
| Overall dimension(L*W*H)mm | 8700*2550*3450mm |
| Vehicle weight: | 12500kg |
| Tonnage level: | Heavy Truck |
| Total mass: | 25000kg |
| Front track: | 2048mm |
| Approach angle: | 24° |
| Departure angle: | 25° |
| Fuel type: | disel |
| Drive form: | 6X4 |
| Gearbox: | JAW CA12TAX230M |
| engine: | Xichai CA6DM2-42E6 |
| Number of cylinders: | 6 |
| Displacement: | 11.05L |
| Maximum horsepower: | 420HP |
| Maximum torque: | 2200N·m |
| Rated speed: | 1800rpm |
| Emission Standards: | Euro 2/3/4/5 |
| Maximum output power: | 309kW |
| Maximum torque speed: | 1000-1400rpm |
| Engine form: | Six-cylinder, in-line, supercharged and intercooled |
| Cargo box parameters | |
| Carton length*width*height | 5800*2300*1500, floor is 8mm, side is 6mm |
| Hydraulic cylinder | HYVA or other China brand Ventral tipping or front tipping |
