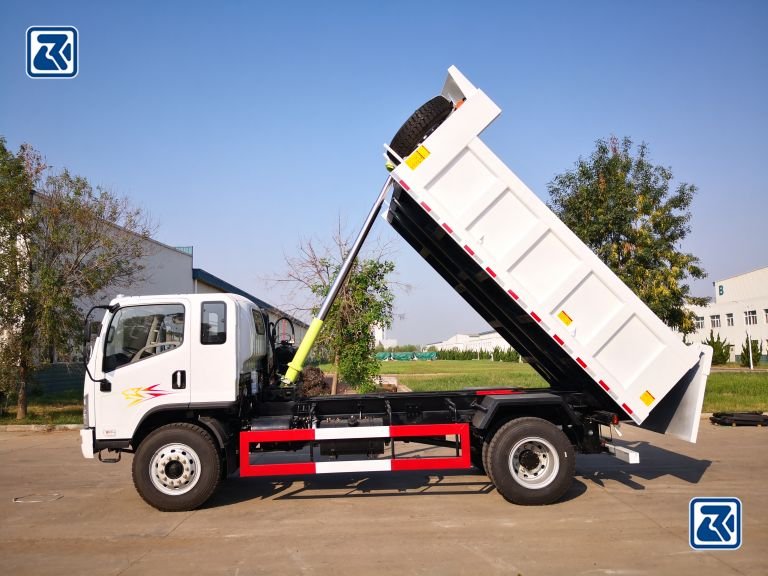

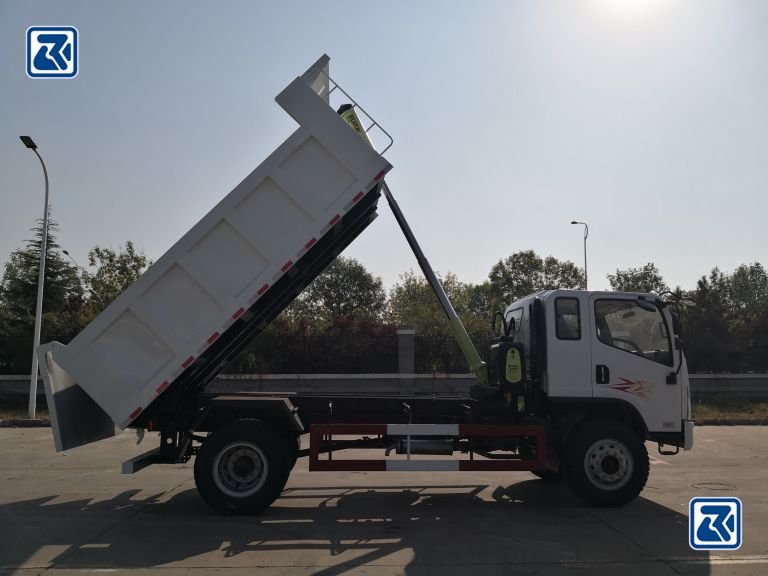

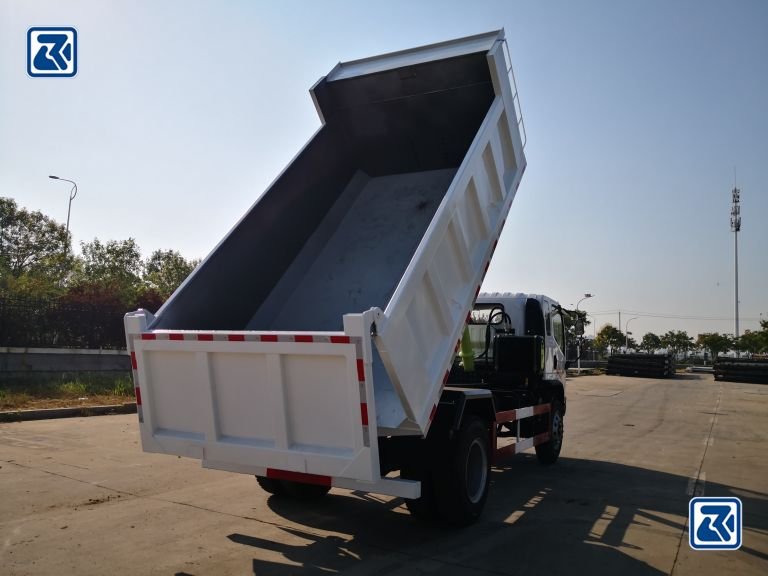

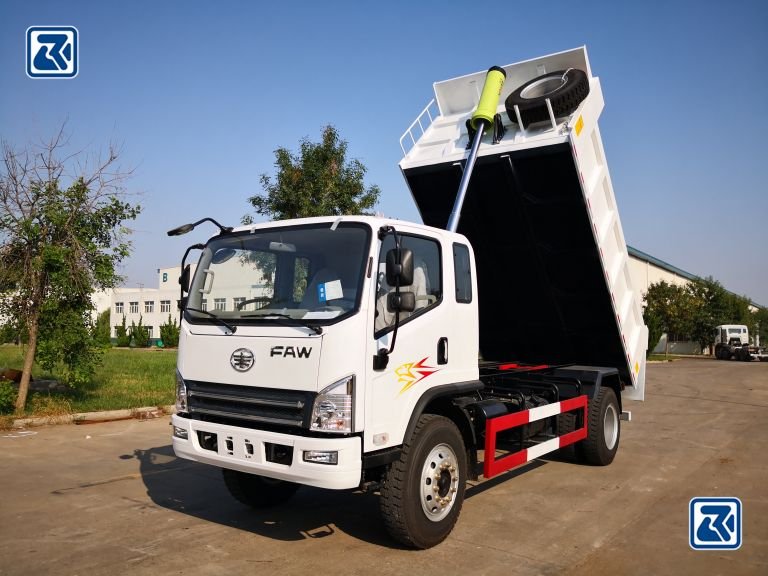

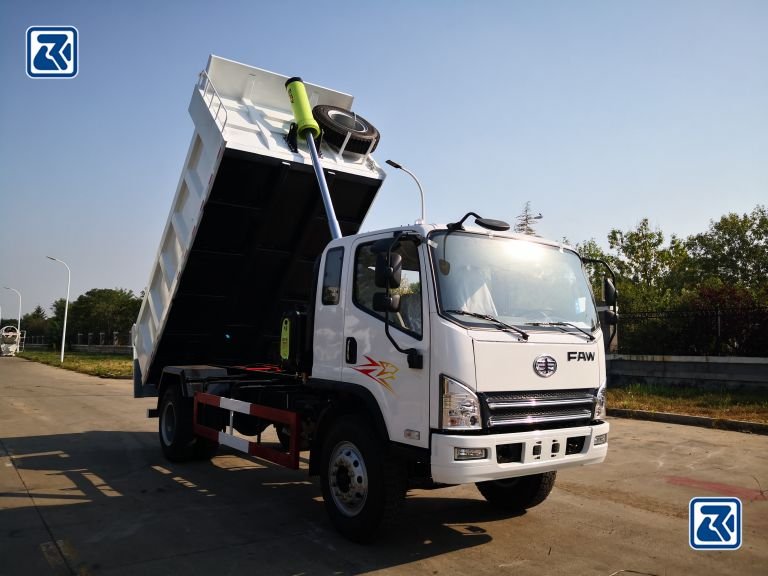

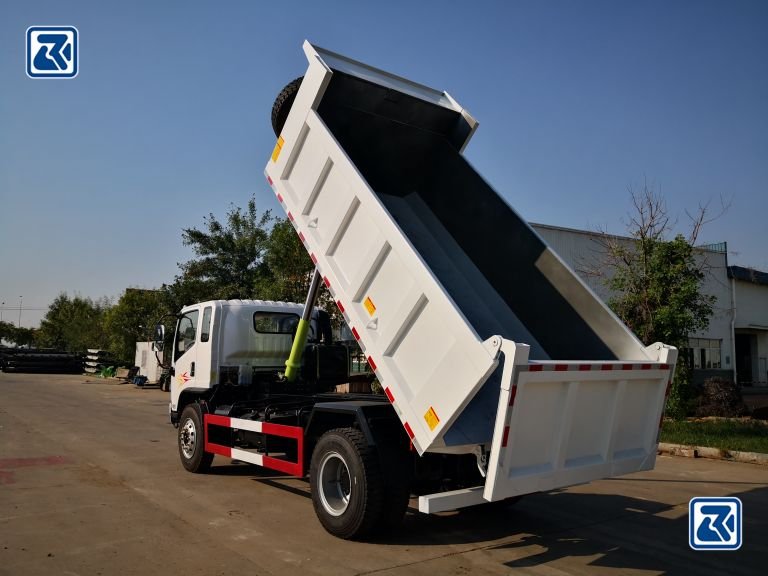

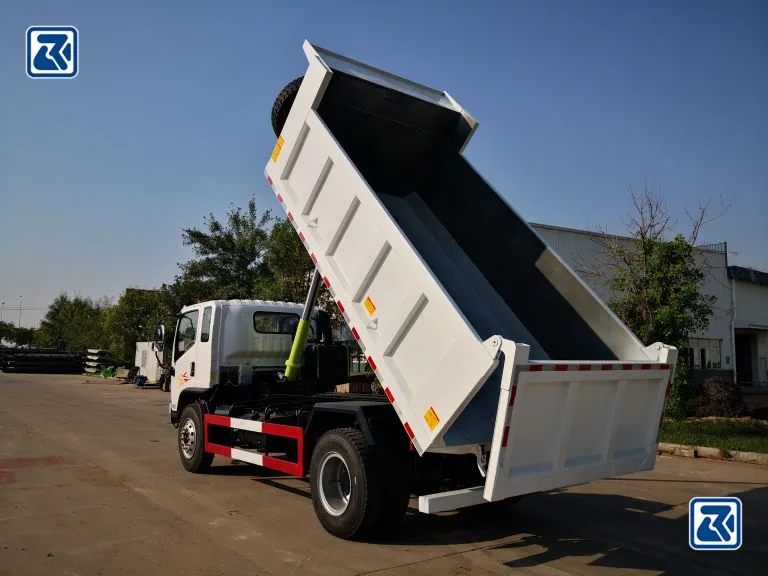

FAW Tiger V 4×2 Dump Truck
FAW Tiger V 4x2 Dump Truck For Sale
The FAW Tiger V 4×2 Dump Truck is a cost-effective dump truck for small to medium construction and utility project needs. This truck combines practical design with economical cost. The vehicle’s cab is designed for driver comfort and ease of use. It provides consistent, reliable performance in cities and the country. Its powerful and efficient operating system lets the FAW Tiger V 4×2 dump truck handle many tasks. It can handle earthmoving or material transportation with ease. This makes it an ideal choice for efficient and reliable businesses.
Specification
| Brand | FAW |
| Model | CA1073P40 |
| Cabin | one and a half |
| Whole vehicle main dimensions (mm) | |
| Truck LxWxH | 6980x 2190 x 2290 |
| Cargo body (LxWxH) | 4200 x 2000 x400 |
| Driving type | 4 x 2/ 4X4 |
| Wheel base | 4130 |
| Wheel track(front /rear) | 1564/1550 |
| Min. ground clearance | 213 |
| Weight data(kg) | |
| Curb weight | 3570 |
| Rated payload | 5000 |
| Persons in cabin | 3 |
| G.V.W | 8765 |
| Max. Speed(km/h) | 90 |
| Max. Slope of climb (%) | 25 |
| Min. Turning radious (m) | 9 |
| Engine | |
| Engine type | FAW CA498E3-12/CUMMINS 140HP |
| Displacement | 3.875 |
| Rated power (kw/rpm) | 120/140HP |
| Max torque (N.m/rpm) | 245 |
| Steering gear type | POWER STEERING |
| Bake system | |
| Service brake and boosting type | AIR brake |
| Park brake | AIR brake |
| Auxiliary brake | yes |
| Wheel & tyre size | 7.50-16 |
| Electric device | Rated voltage 24V |
