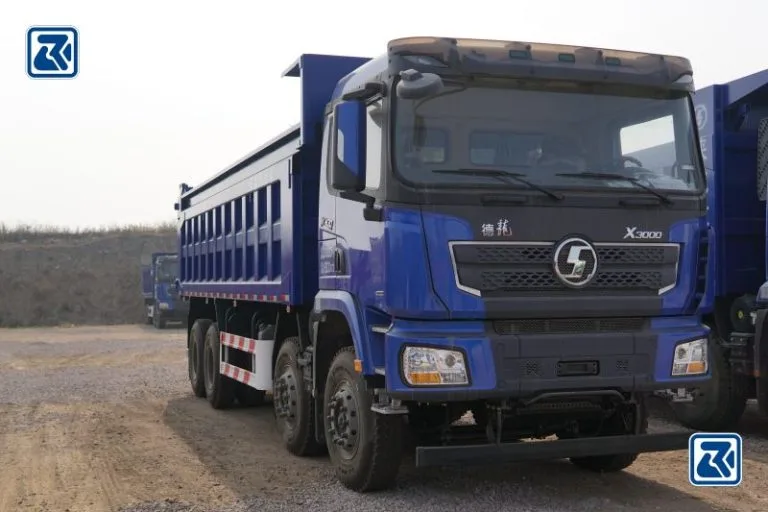

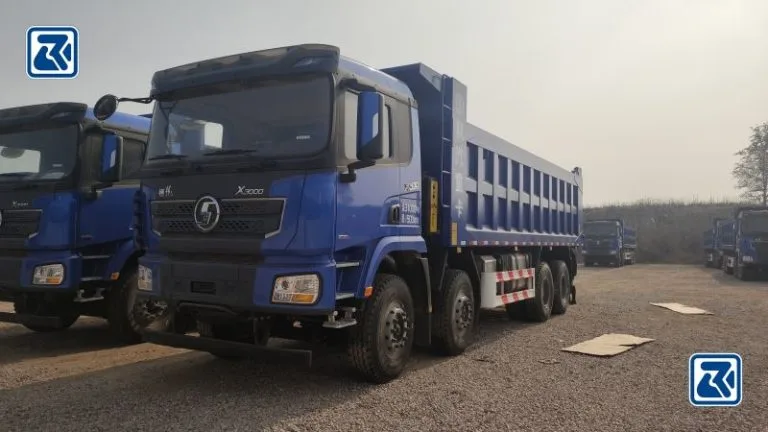

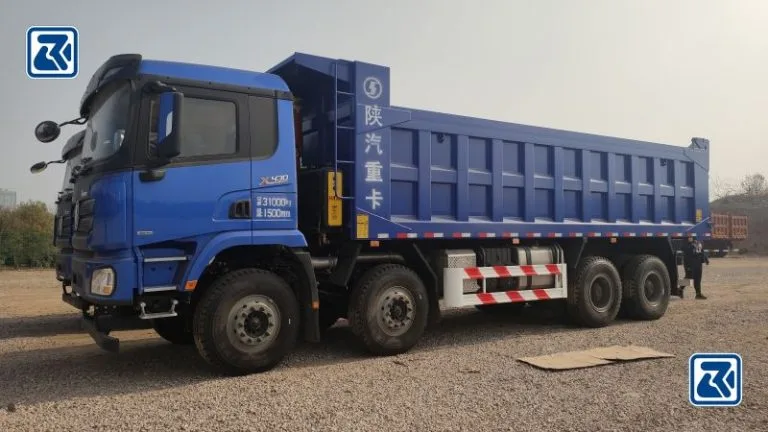

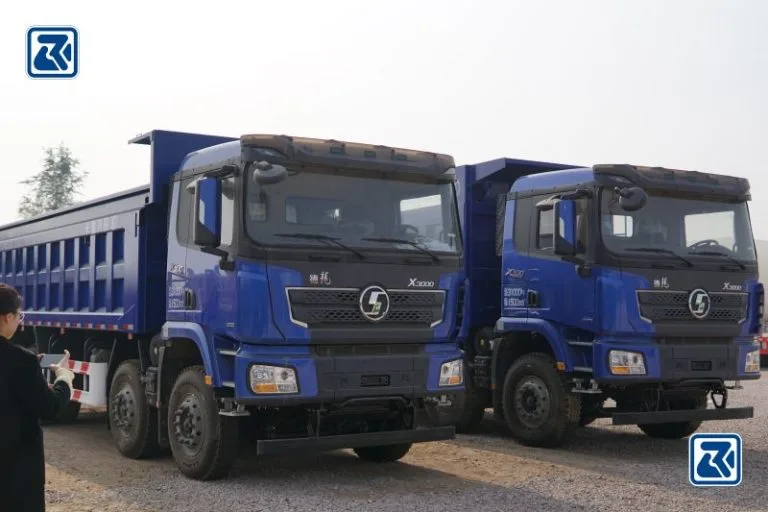

Shacman X3000 Dump Truck 8X4
Shacman X3000 Dump Truck 8X4 For Sale
The Shacman X3000 Dump Truck 8X4 is a rugged and versatile heavy-duty vehicle powered by a powerful 420hp ISME420-30 engine that meets Euro 2/3 emissions standards. The X3000 model features a left-hand drive, high cab configuration that ensures driver comfort and visibility, which is essential when considering the truck’s long haul potential. Equipped with robust MAN axles, a wheelbase that is stable on all terrains and a wide range of tyre options including 12R22.5, 12.00R20/14.00R20 and 315/80R22.5, the Shacman X3000 is ready to take on any tough job.
Specification
| MODEL | SX33186V384C |
| Driver position | Left Hand |
| Cab | Medium length flat top |
| Driving type | 8*4 |
| Wheelbase | 1800+3775+1400 |
| Max. Speed(km/h) | 80km/h |
| Engine | |
| Brand | CUMMINS |
| Model | ISME 420 30 |
| Emission Standard | EUROIII |
| Rated output power(PS) | 420HP |
| Displacement | 10.8L |
| (L) | |
| Transmission | FAST 12JSD200T-B+QH50 |
| Front axle | HANDE MAN 9.5T |
| Rear axle | HANDE 16T MAN double reduction driving axle |
| Speed ratio 5.262 | |
| Clutch | ¢430 diaphragm clutch¢430 |
| Frame | 850×300(8+7) |
| Suspension | multiple leaf springs front and rear/four main spring + four bolts |
| Fuel tank | 400LAluminum alloy |
| Wheels and tires | 12.00R24(12+1) |
